Waste stripping machine and chain Function: The pneumatic waste stripping machine drives the toothed chain to circulate at high speed through the air motor, and uses the sharp toothed chain to hook out the edge of the waste paper and remove it.

Features:

(1) The waste removal machine is a very efficient manual waste removal equipment. Manual waste removal takes 3 hours, while machine waste removal can be completed in 10-30 minutes. The waste removal efficiency is increased by nearly 10 times, which greatly shortens the delivery time. cycle;

(2) The Die Cutting Waste Stripper Machine has a compact structure and is about the same weight as a commonly used portable electric drill tool. It is very easy to use and can be operated by both male and female employees after simple training;

(3) It does not damage the bonding part of the product when cleaning waste, and improves the production efficiency of the subsequent process (gluing box/automatic packaging);

(4) Air motor is used as the power source of waste cleaning machine, which has good safety and long service life of equipment;

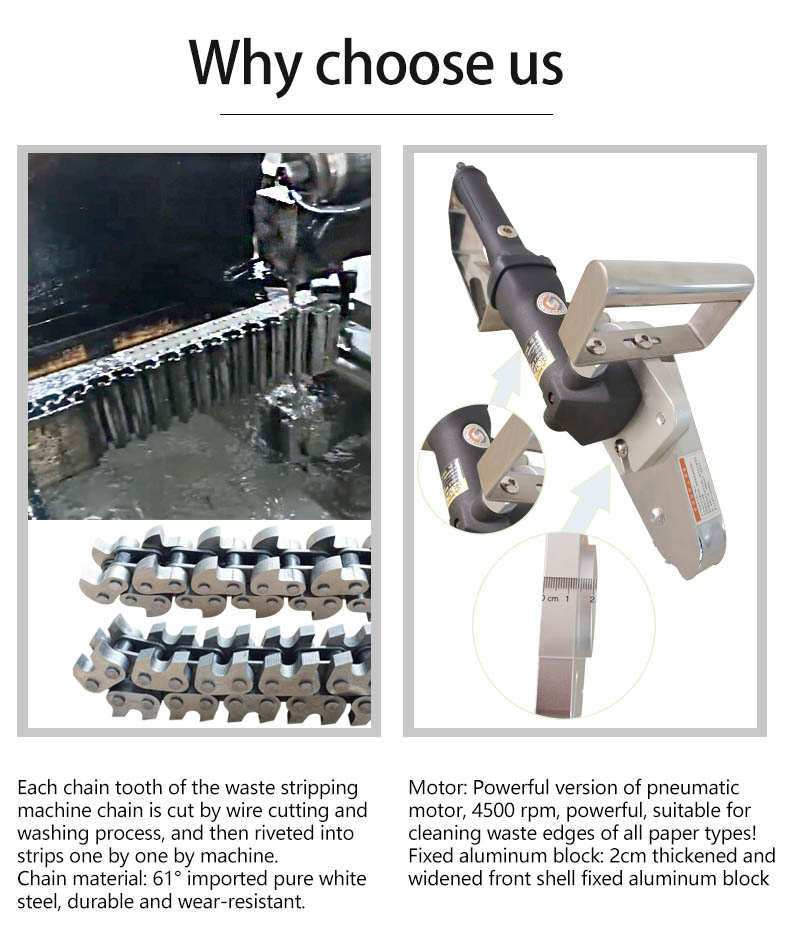

(5) The tooth chain of the Waste paper trimming machine is made of Swedish hardened pure white steel, wire cutting technology and riveting technology. It has extremely high hardness, strong wear resistance, long service life and easy replacement;

(6) Reduce work-related injuries and repetitive operating movements;

working principle

1. Power output part:

It is mainly composed of an air motor and a power output gear. It relies on high-pressure compressed air to blow the motor blades to make the motor rotor rotate, output rotational motion to the outside, and transform part of the motion through the gear rotation. According to whether the stator and rotor are concentric, pneumatic motors can be divided into concentric motors and eccentric motors. According to the number of air inlets, they can be divided into single air inlet motors, double air inlet motors and multi air inlet motors. wait. No matter what kind of air motor it is, it relies on compressed air to blow the motor blades to drive the rotor to rotate. The motor blades rub against the inner wall of the stator when rotating at high speed, so it has a great correlation with the quality of the compressed air and whether there are lubricating oil molecules in the compressed air. Air motors usually need to be used in conjunction with special air tool maintenance oil.

2. Conversion part

The important thing is to convert the rotational activity output by the motor accordingly.

For pneumatic tools, the conversion part is mainly divided into mechanical clutch and planetary gear set, friction plate clutch and planetary gear set, hydraulic cylinder, torsion bar and hammer block set, etc. The above components are all important components based on rotational movement, which determine important parameters such as the torque, speed of rotation, and tightening accuracy of the pneumatic tightening tool.

3. Inlet and exhaust line part

The commonly mentioned pneumatic switch can be controlled because it is in direct contact with the executive and external objects when it works.

4. Power source supply part:

Compressed air is mainly formed after the air compressor compresses the atmosphere, and is transported by compressed air pipelines to related air-consuming equipment such as pneumatic waste strippers. Air Filtration Between the compressed air transported by the pipeline and the pneumatic tools, compressed air filtration and adjustment devices must be installed, and the pneumatic triple unit undertakes this task. Pneumatic triple parts are mainly composed of barometer, filter, lubricator, pressure regulator and other parts.

The above-mentioned parts of the waste stripping machine are mutually common to realize the working process.
