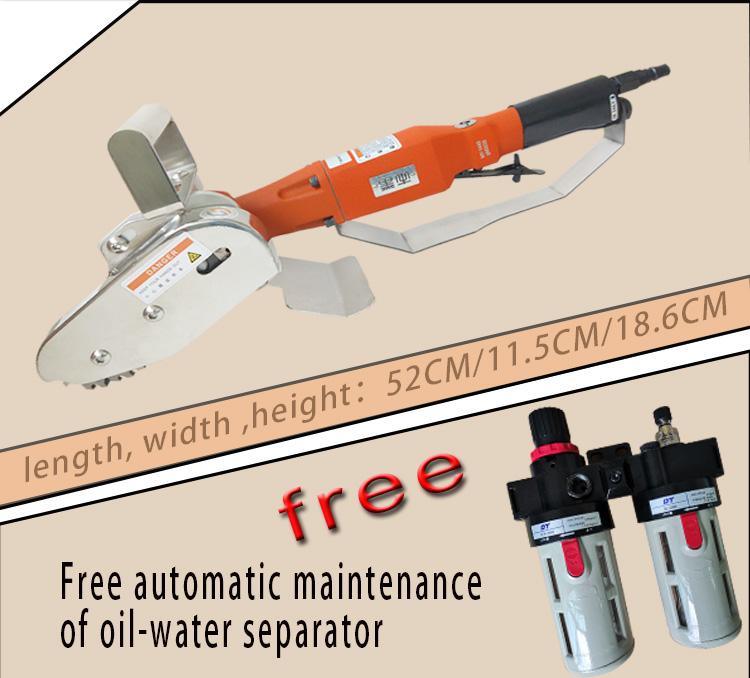

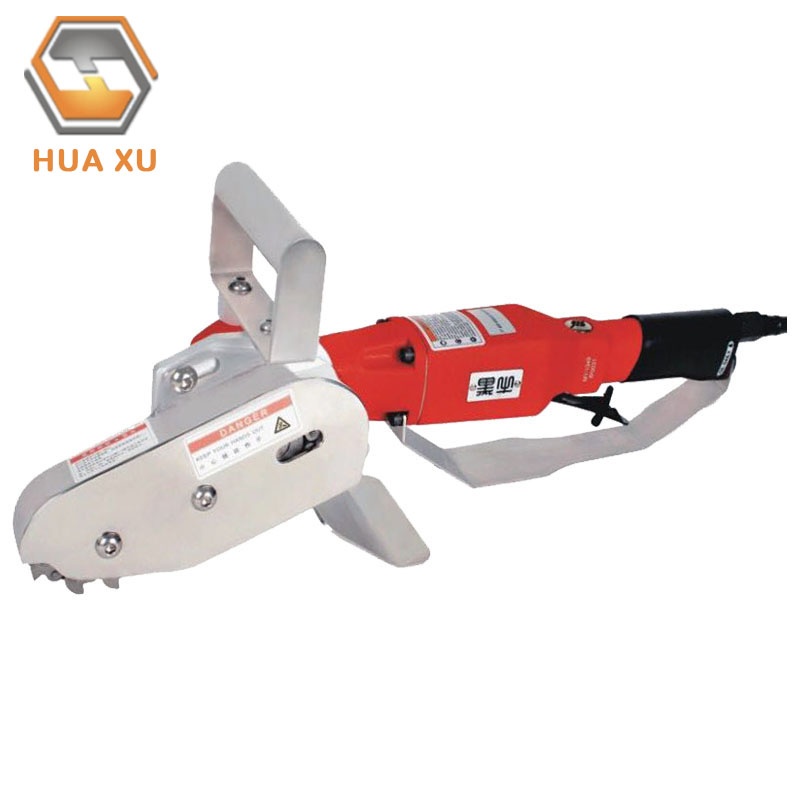

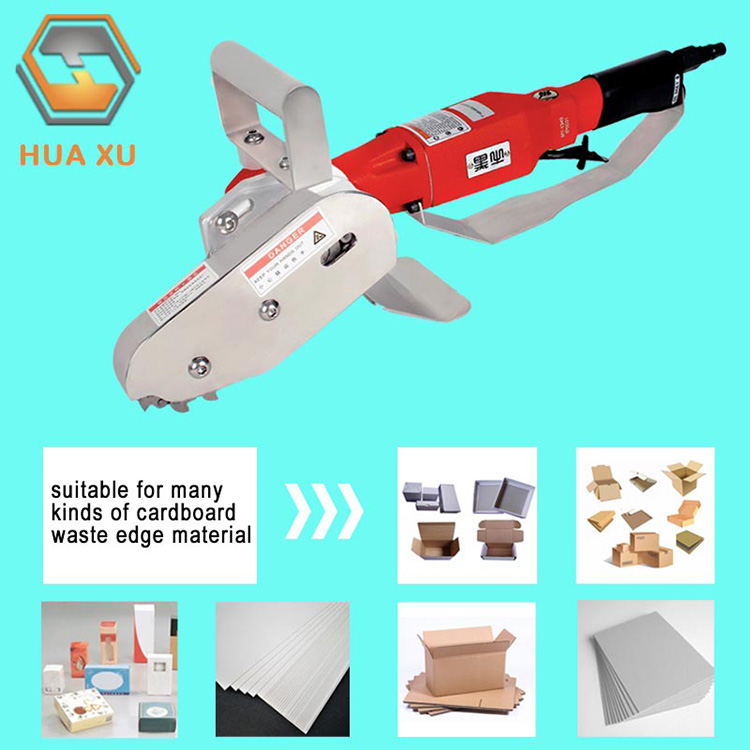

HS-2936 strong powerful Pneumatic Waste Stripping Parameter introduction：

Species:	Pneumatic waste stripper	Model number:	HS-2936
Free speed:	4500RPM	Inlet diameter:	8*12mm
Air compressor power	≥3.5KW	Barometric requirement:	0.6-0.8KPA
Net weight:	4.5KG	Sprocket profile:	large/middle teeth

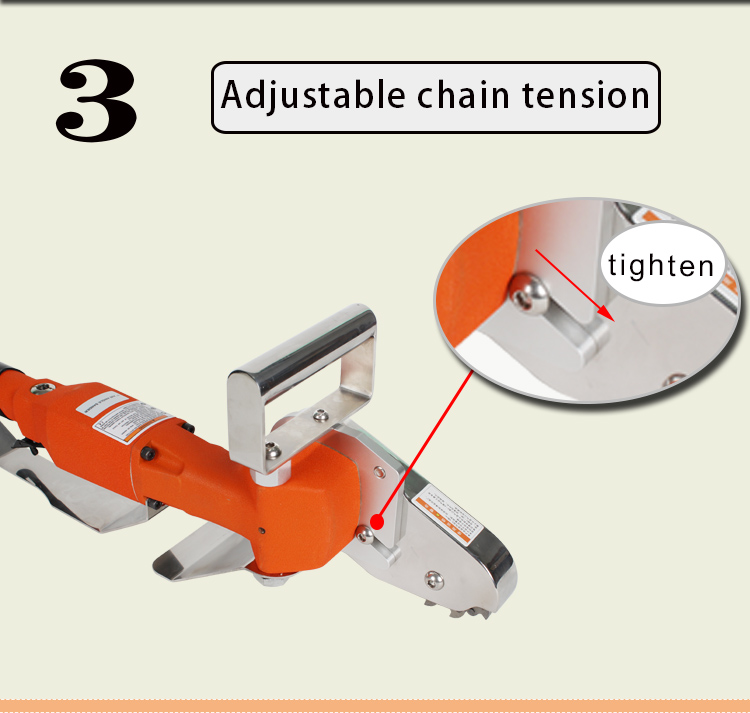

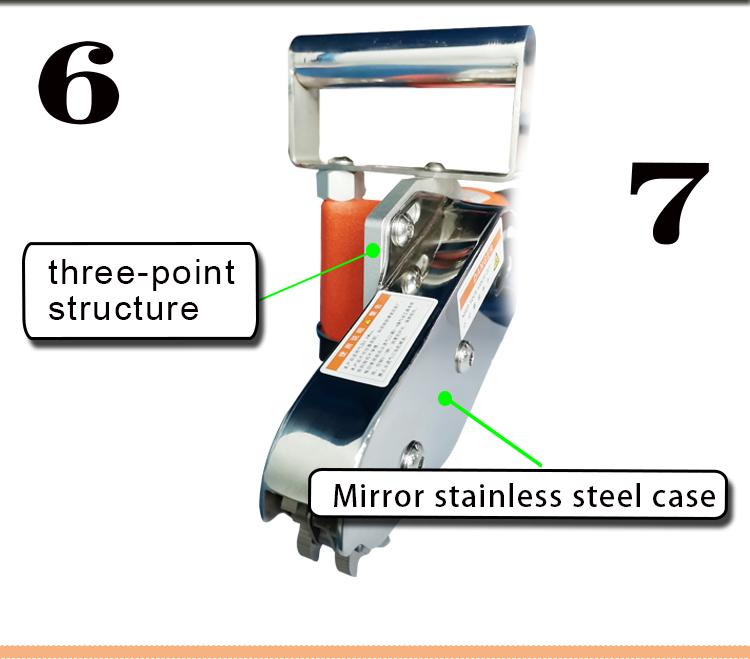

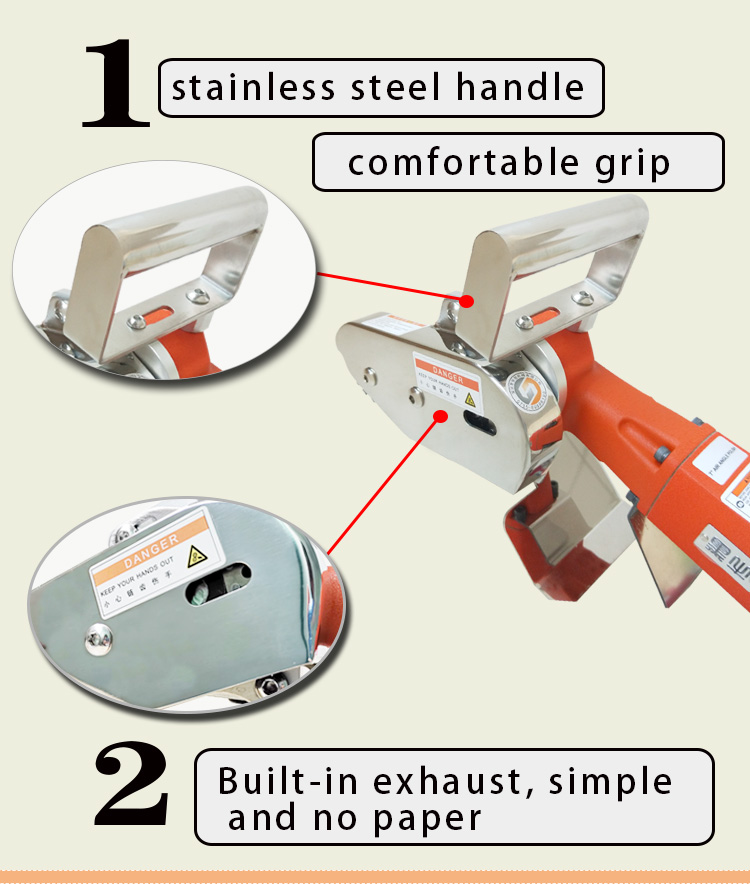

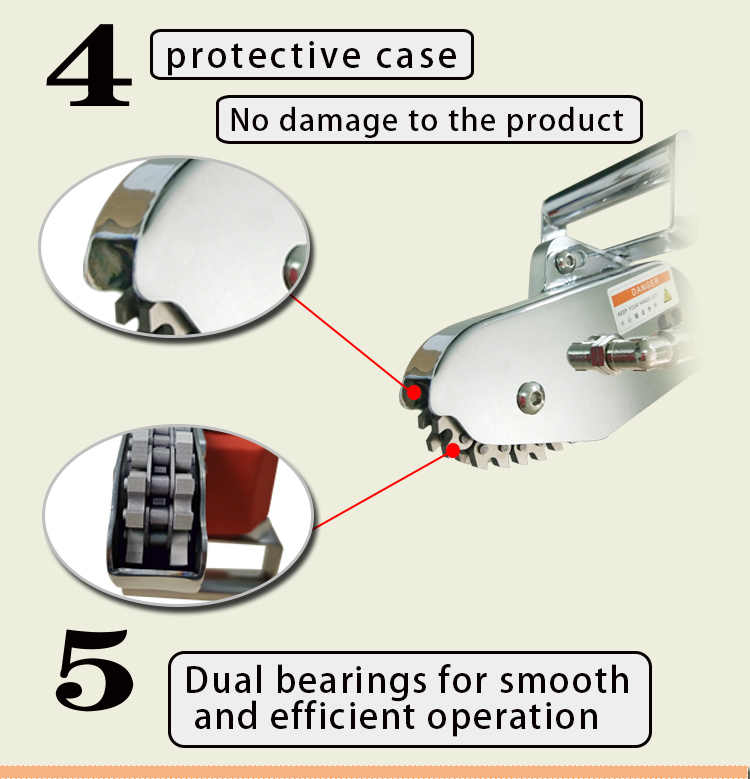

HS-2936 Die Cutting Waste Stripper Machine details:

Die cutting edge paper machine HS-2936 instructions:
1. Waste paper trimming machine tools are for use, not for maintenance;

2.The pneumatic waste stripper machine is different from other pneumatic tools. After one week of running in period, it can keep the chain and sprocket sliding freely at any time. Add a few drops of gear oil to the chain every half working day to reduce friction, so as to extend its service time;

3.First, make sure that the machine is connected with the air source to ensure that the air pressure is 6-8kg, and the air pipe is required to be 8 * 12m / m to work normally;
4.Before opening the air pressure, drive the chain by hand, whether it can roll freely or not, otherwise it can not be used. After adjusting the paper grabbing direction of the waste cleaning machine, fix the locking screw 38 × to prevent it from swinging;

5.Open the sliding switch 01 × before operation or adjust the front pressure regulating valve to the maximum;

6.Inject professional air tool oil and lubricating motor from air inlet;
7.When working, press the pressing plate 3 times to start working;

8.Before going to and from work every day, make sure to drip three to four drops of special oil for pneumatic tools from the air inlet, and idle for 2-3 seconds.

The use of the waste stripper must be equipped with a mold cutting knife. Refer to this picture for the placement of the cutting edge:
