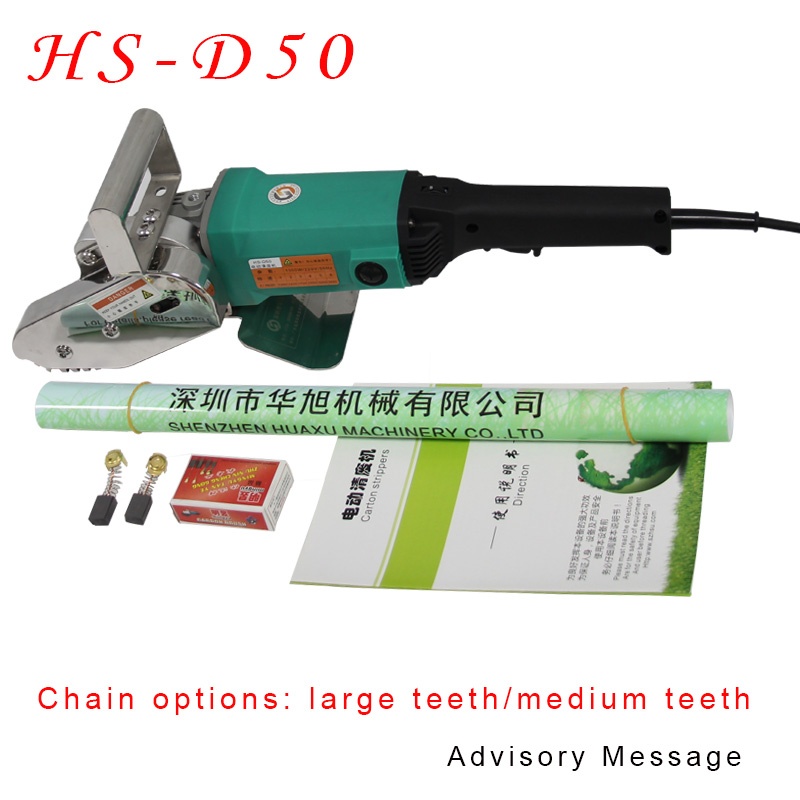

HS-D50 User Manual:

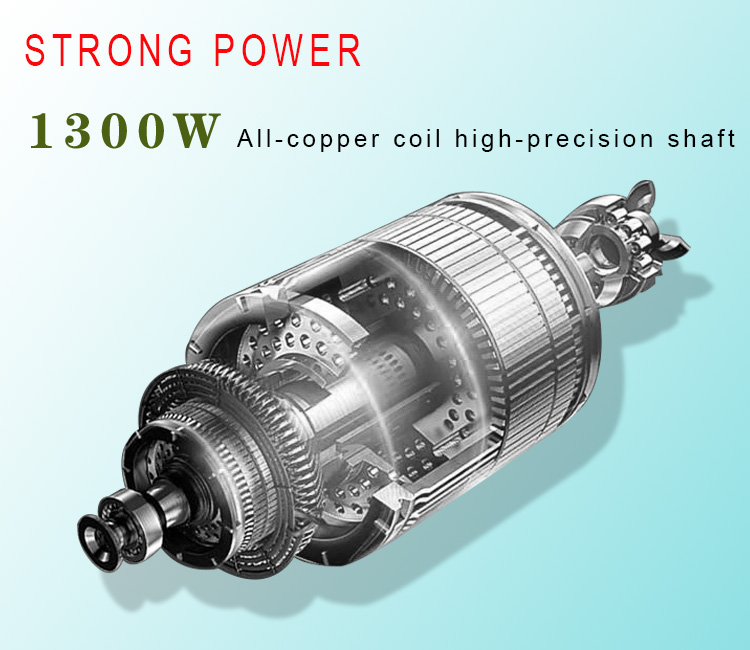

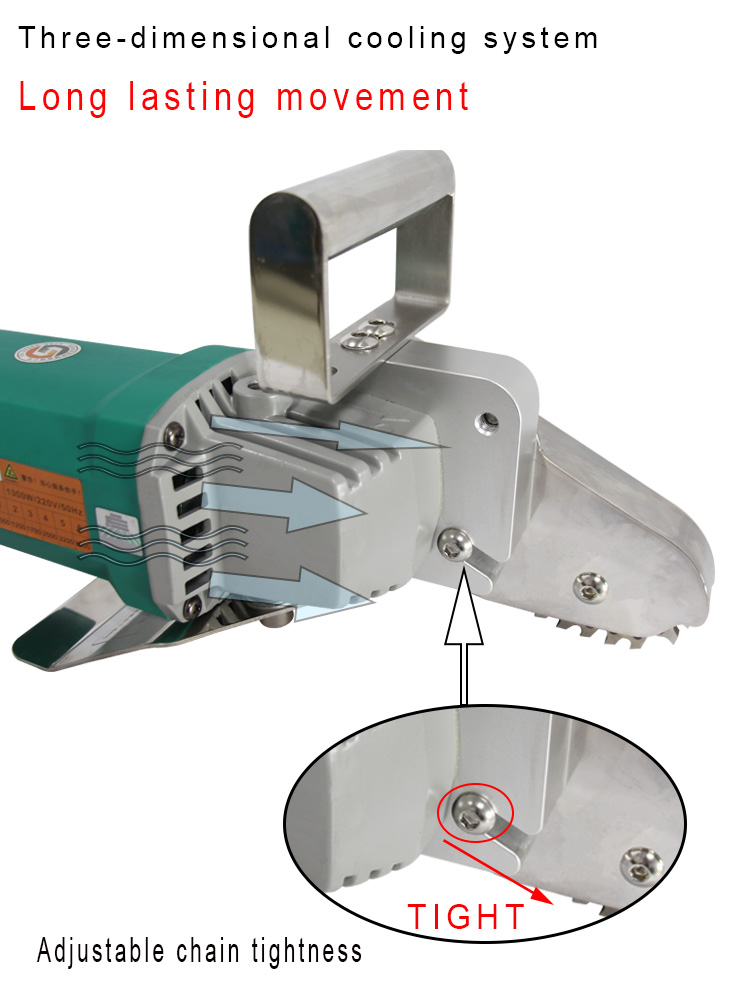

1. When using an electric stripper, the air inlet and outlet of the machine must be kept clear to ensure a good heat dissipation channel;2. The electric waste cleaning machine uses pure copper power device, enlarged coil, metal head and thickened insulating rubber shell. Body weight: 5.5 kg. The operator should work for 15 minutes, put down the machine and rest for a while, and then perform the second operation. Caution is required when operating the machine.
3. Be aware that sprocket teeth may cause injury. The sprocket teeth are manufactured using wire cutting technology, making them sharp and durable. Both hands are required to lift the machine and operate it. It is prohibited to operate the machine with one hand.
4. Just adjust the waste paper stripper to the 4th gear. It is not recommended to adjust the speed above the 4th gear.
5. Lift the machine with both hands and turn on the power, then gently place it on the edge of the waste paper and press gently to quickly peel off the edge of the waste paper behind the mold.

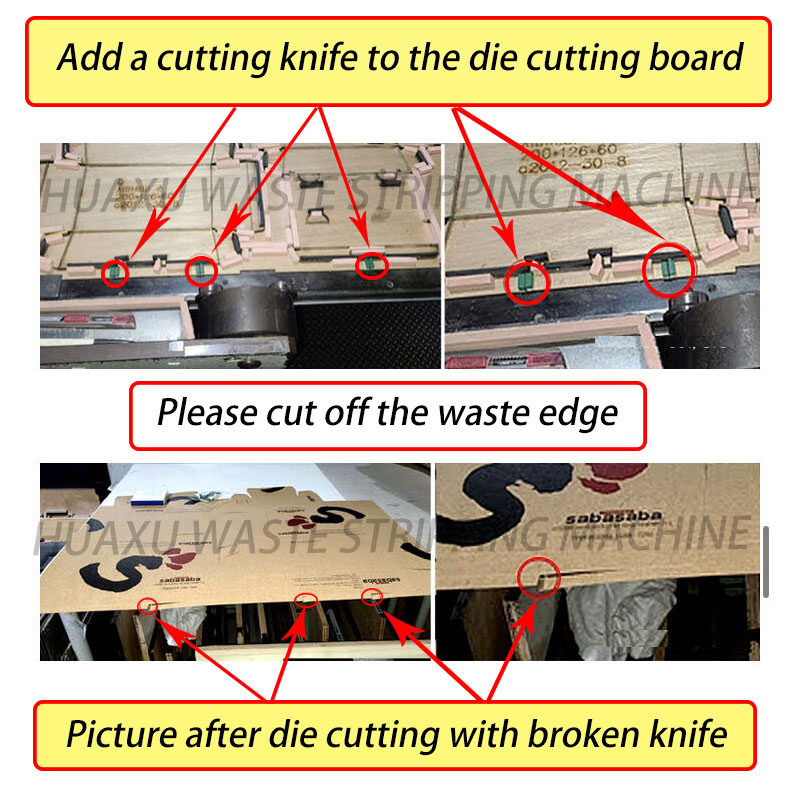

6. The products to be stripped need to be placed neatly, and the edges of the waste paper need to be equipped with a cutting knife. Cut the scrap edge into 1-2 parts. The diagram of placing the cutting knife is as follows:
