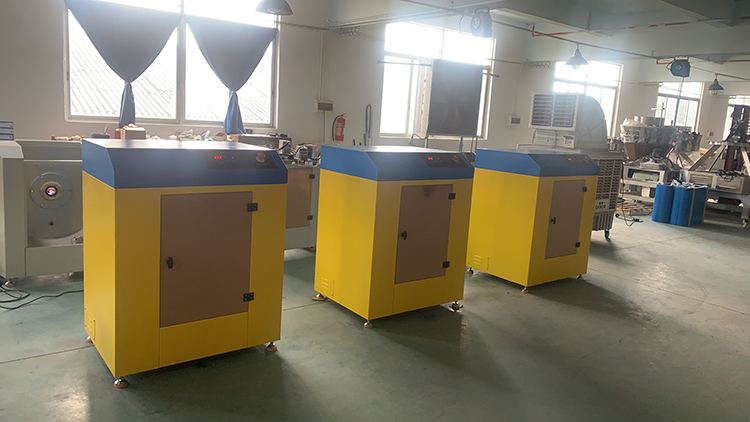

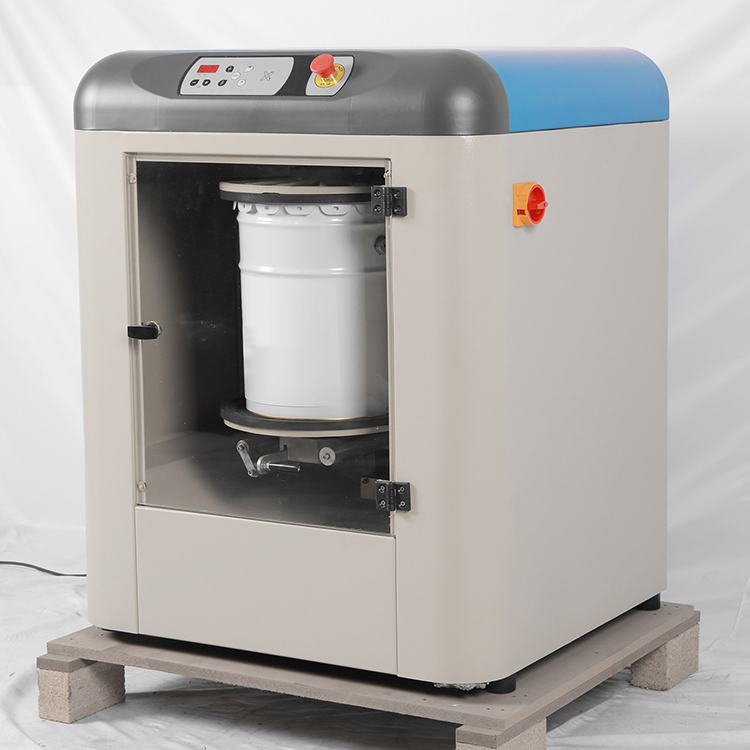

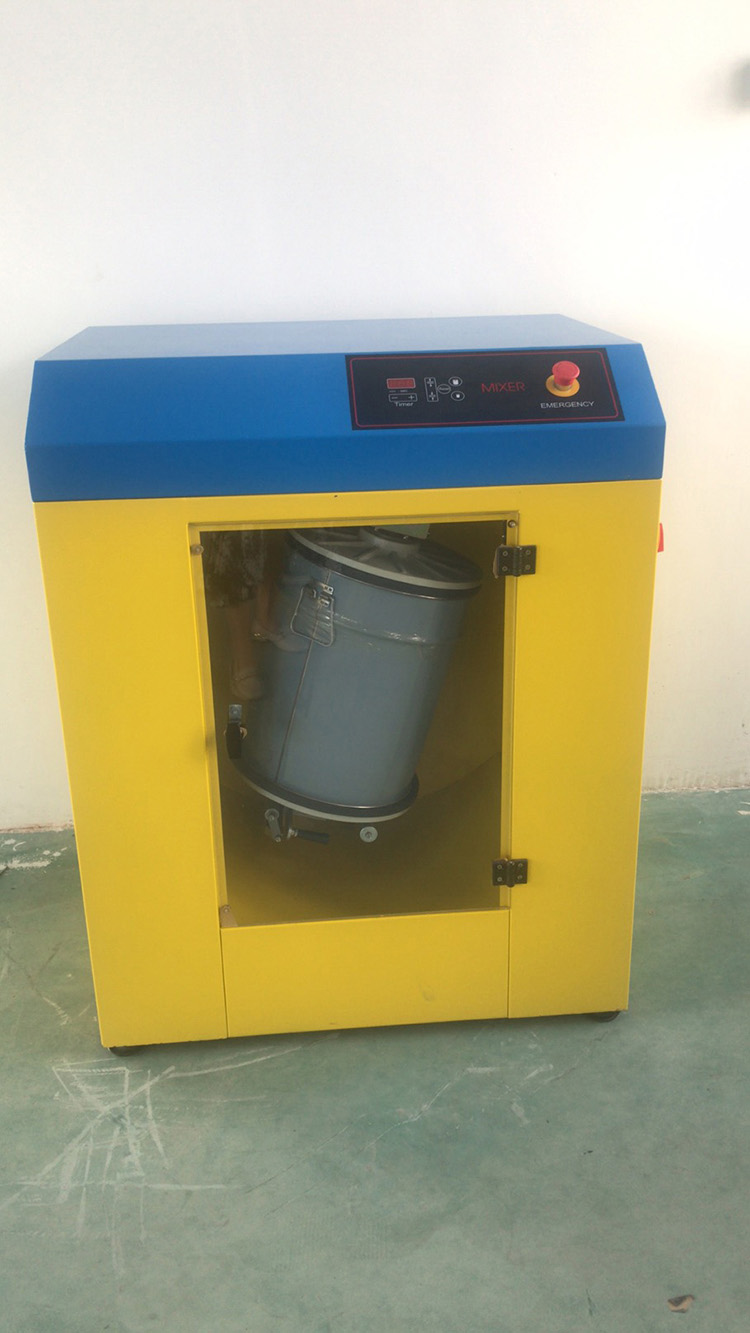

JY-30A2 Elevated Fully Automatic Rotary Oil Mixer

1) Suitable Mixing Range: 0.5L-20L drums of paint and ink

2) Container Plate Lifting Range: h=70-500mm, Diameter=70-330mm

3) Main Motor Power: 750W

4) Revolutionary Rotation Speed: 100-200r/min

5) Autorotation Speed: 200-400r/min

6) Power Supply: 220V±10%, 50HZ, 10A

7) Net Weight: 200KG

8) Gross Weight: 250KG

9) Machine Dimensions: 1200 (H) × 960 (W) × 710 (D) mm

Packaging Dimensions: 1300 (H) × 1000 (W) × 810 (D) mm

Each time the machine is powered on, it automatically runs a self-test program until all components meet the starting requirements before operation. If any abnormality is detected, the controller automatically alerts the operator via digital display and buzzer, requesting a reset (the machine performs the reset automatically), ensuring safe operation.

The fully digital display shows the real-time operating status or running time, ensuring the operator has a clear understanding of the operation. The machine's internal container support platform can be moved and fixed smoothly, saving time and effort during use.

It automatically identifies the capacity of the containers and outputs the appropriate rotational mixing speed.

During mixing, revolution and rotation occur simultaneously in all directions.

Multi-segment intelligent frequency conversion speed regulation ensures precise speed control during operation, guaranteeing smooth running.

A door-opening shutdown protection device ensures safety and reliability.
